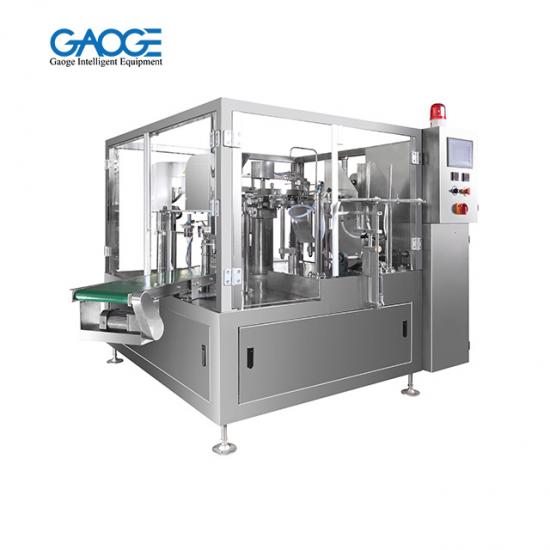

GPB6 Premade Pouch Rotary Fill & Seal Packing Machine

GPB6 Premade Pouch Rotary Fill & Seal Packing Machine

GPB Series was born with a rugged gene from Korea with rare defeats in design and keep updating, suitable in the most severe working environments. Also ready for ZIP pouch & pouches with corner spout.

  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Premade Pouch Rotary Packing Machine is an automatic packing machine which automatic feeding & pick up pouches, coding, open the pouches, filling products into the pouches, then sealing & output.


Standard 6 Stations Work Flow

  1. Feeding Pouch & Pick Up By Gripper
  2. Coding & *Open Zipper
  3. Pouch Top & Bottom Open
  4. Fill
  5. Heat Seal
  6. Embose Seal & Out Feeding


Feature:

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

The part where touch to the materials is made of stainless steel and according with the request of GMP.



Model GPB6-260 GPB6-340
Working Stations Number Six
Pre-made Pouch Types Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc.
Pre-made Pouch Size Width: 140 to 260mm  Width: 200 to 340mm
Length: 150 to 400mm  Length: 200 to 450mm
Capacity 20 to 40bpm (depending on product and pouches)
Filling Range 10 to 5000g (depending on the product)
Power Consumption 2.0kw 2.1kw
Air Consumption 0.4 m³/min (supplied by the user)
Outer Dimension 1700*1300*1400mm 1900*1300*1500mm
