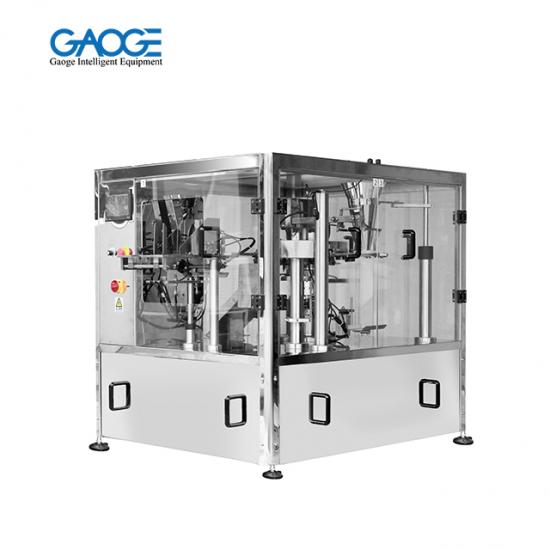

GPB8 Pre-made Pouch Fill & Seal Machine

GPB8 Pre-made Pouch Fill & Seal Machine

The GPB series of GAOGE Premade pouch packaging machines is suitable for powder product, granule product, liquid product and paste product automatic packing. Rotary bag-given packing machine with different dosing(such as multi-head weigher, liquid filler, auger filler etc.),can be suitable for the automatic packing for granular, powder, liquid, paste etc.

  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Premade Pouch Rotary Packing Machine is an automatic packing machine which automatic feeding & pick up pouches, coding, open the pouches, filling products into the pouches, then sealing & output.


Standard 8 Stations Work Flow

  1. Feeding Pouch & Pick Up By Gripper
  2. Coding & *Open Zipper
  3. Pouch Top & Bottom Open
  4. 1st Fill
  5. 2nd Fill
  6. *3rd Fill or * Pre-Heat Seal
  7. Heat Seal
  8. Embose Seal & Out Feeding


Feature:

Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

The part where touch to the materials is made of stainless steel and according with the request of GMP.



Model GPB8-200 GPB8-260
Working Stations Number Eight
Pre-made Pouch Types Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc.
Pre-made Pouch Size Width: 90 to 200mm Width: 140 to 260mm
Length: 100 to 350mm Length: 100 to 400mm
Capacity 10 to 45 bpm (depending on product and pouches)
Filling Range 10 to 3000g (depending on the product)
Power Consumption 2 kw 2kw
Air Consumption 0.4m³/min (supplied by the user)
Outer Dimension 1700*1300*1400mm 1900*1450*1500mm
