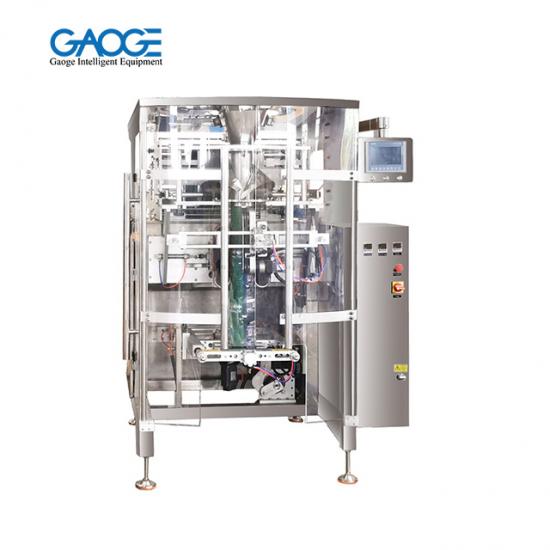

GVF-730Q Quad Seal Bagger Form Fill and Seal Packaging Machine

GVF-730Q Quad Seal Bagger Form Fill and Seal Packaging Machine

Suitable for measuring and packing anomalous lumpish and granule materials, such as candy, popped food, biscuit, coffee,roasted seeds and nuts, granulated sugar, deep-frozen food, milk powder, milk tea, amylum, sauce and so on.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

It's configured to produce four corner edge seal stand-up bags, quad seal bags, it’s also available to do pillow and gusset bag by option.


Feature:

·        Dual Servo Control

·        Stainless Steel Construction

·        Auto Positioning Belts

·        Auto Film Detection

·        Auto Centering Film Spindle

·        PLC Controls

·        Color Touch Screen Display

·        Easy to operate and clean


1.       Full configuration for heat‐sealable materials (PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON)

 Full synchronization for varies dosing system to reach Forming, Filling & Sealing quickly, accurately, and reliably.

2.       Quick release, side‐loading film reel air operated mandrel, Film reel out warning.

3.       Action sequence adjustable, provide perfect sealing to film, and save each second, increase working speed.

4.       Vacuum pump & Servo‐driven film feeding system with pneumatic film pulling wheel locking system.

5.       Independent temperature adjustment.

6.       Simple and fast bag size changeover with one‐piece forming sets.

7.       Omron PLC & 5.7” Omron Colorful Touch‐Screen with simple menu‐based interface. Program storage and retrieval function.

8.       Panasonic Servo driven horizontal (cross) sealing system.

9.       Safety guard to stop machine in any door opened.

10.    All product contact parts are made of food grade stainless steel S/S304.

11.    Film auto tracking; Length registered by OMRON photo sensor and OMRON Encoder; Independent platen control, easy position adjust.



Model:

GVF-730Q

Bag type

Quad seal bag, gusseted bag

Operation Mode

Intermittent

Speed

Up to 50 bags/min

Quad Seal Bag

Length

100 to 420mm (3.9 to 16.5in)

Width

60 to 220mm (2.3 to 8.6in)

Depth

50 to 120mm (1.9 to 4.7in)

Reel Film Width:

Width and depth combinations are limited by the overall 730mm (28.7in)

Edge Seal Width

5‐10mm (0.2‐0.39in)

Film Thickness

0.04‐0.12mm (40‐120mic.)

Reel Outer Dia

500mm (19.7in)

Reel Inner Dia

75mm (2.9in)

Voltage

220V/50Hz, 1phase or per customer specification

Power Consumption

4KW

Compressed Air Requirement

0.6 MPa 0.36 M3min

Machine Dimension:

L1650 X W1300 X H1650 mm; (in):L65.1 X W51.2 X H70.9

Shipping Dimension:

L1850 X W1400 X H2000 mm; (in):L72.8 X W55.2 X H78.8

Machine Weight

1000kgs
