Premade Pouch Packing Machine

Rotary Fill and Seal With Pistion Filler for Liquid & Paste

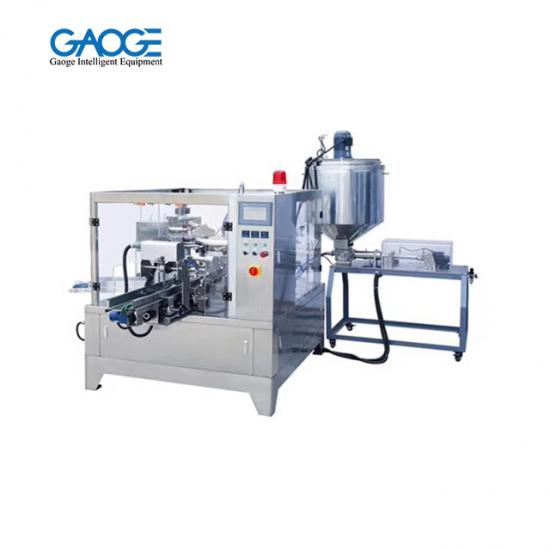

Rotary Fill and Seal With Pistion Filler for Liquid & Paste

Equipped with piston filler as the dosing system, it is widely applicated to packing liquid and paste, such as detergent, softener, shampoo, shower gel, milk, water, juice, soybean sauce, oil, ketchup, mayonnaise and so on.

  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape


Premade Pouch Rotary Packing Machine is an automatic packing machine which automatic feeding & pick up pouches, coding, open the pouches, filling products into the pouches, then sealing & output.


Standard 8 Stations Work Flow

  1. Feeding Pouch & Pick Up By Gripper
  2. Coding & *Open Zipper
  3. Pouch Top & Bottom Open
  4. 1st Fill
  5. 2nd Fill
  6. *3rd Fill or * Pre-Heat Seal
  7. Heat Seal
  8. Embose Seal & Out Feeding


Feature:

Automatic Pre-made Pouch Rotary Packing Machine designed by Korea
Equipped with a 10” PLC touch screen with a graphic interface and an automatic lubricating system.
Washing down the frame, parts above the table made by 304# stainless steel and alumina material.
The whole machine weighs 1.8 tons, and its grippers can work at the 5 KGS bag loading.
Options for 6, 8, 10 workstations; also with vacuum rotary packaging machine with the rotary vacuum chamber.
Verify weight in weighing station, and compensate by servo filling system.
Vacuum pouch in sealing position
Spout at the center of the pouch



Model GPB8-200 GPB8-260
Working Stations Number Eight
Pre-made Pouch Types Heat sealable premade side seal bags, like gusseted bag, flat bottom bags, zipper bags, stand-up bags, spout bags, etc.
Pre-made Pouch Size Width: 90 to 200mm Width: 140 to 260mm
Length: 100 to 350mm Length: 100 to 400mm
Capacity 10 to 45 bpm (depending on product and pouches)
Filling Range 10 to 3000g (depending on the product)
Power Consumption 2 kw 2kw
Air Consumption 0.4m³/min (supplied by the user)
Outer Dimension 1700*1300*1400mm 1900*1450*1500mm
