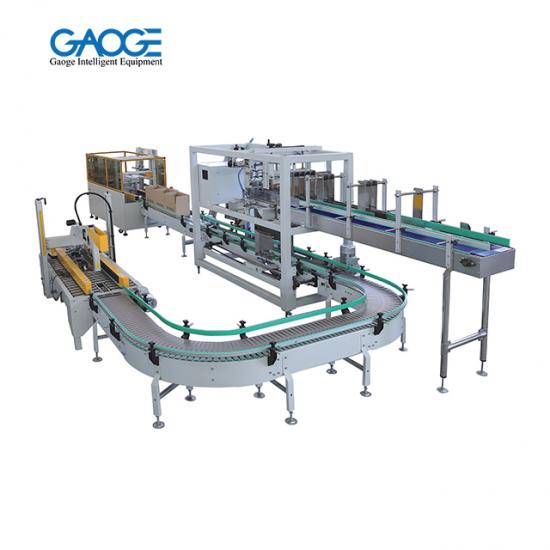

Bag in Carton Intermittent Motion Case Packer

Bag in Carton Intermittent Motion Case Packer

Our range of case packers includes several different types of machines to meet the needs of businesses that fill cases with products. Our machines can help speed up the process and get your products on the road more quickly. By increasing efficiency, we are helping get your products into the hands of your customers faster and maximizing your bottom line.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

The complete erecting, filling and closing process only takes place at two stations. Thus, usual interference sources are reduced to a minimum and the functional reliability increases considerably. The case blanks are held safely and precisely positioned in all stations througout the whole packaging process.

This optimum packaging process leads to geometrically exact packages. As product and packaging are treated carefully, the whole packaging process runs safely and in a controlled manner.

Flexible grouping systems - cycle chain or collecting conveyer for goods to feed into case- enable different product orientation in the case.


Feature:

Space-saving due to compact construction, robust and solid
User-friendly low, ergonomic arrangement of blank magazine
Easy to clean due to clear structure and good accessibility
Gentle product handling by direct and smooth operation
Ideal supplemented by innovative and productive grouping systems
Rapid and safe format size change over for economic production
Optional features such as tray module or external top closing for additional functions
Up to 12 AC cases per minute
Destacking-grouping system
Axes functions with servo drive
Depending on product and case size



Model

GC-120

Max. Speed

120 BPM

Output

5-10 Carton/min

Pouch weight

larger than 10KG

Speed

90 to 120 bags/min

Ambient temp

 -10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

3KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L 900-1100mm x W 550-650mm

Packing weight(kg)

40-50kg/bag
