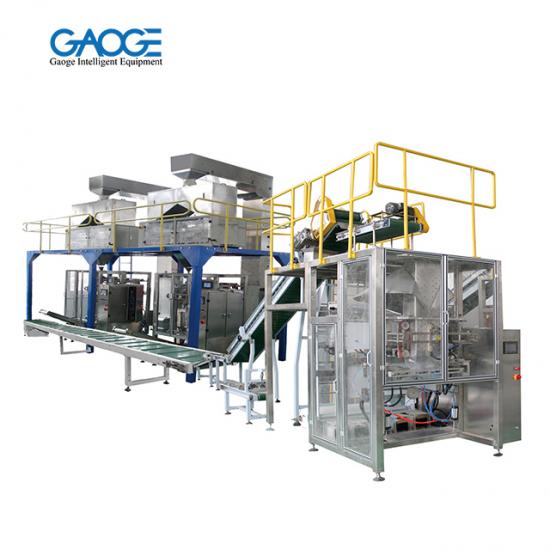

Bag in Bag Packing Machine

Applicable industrials: Agricultures, Foods, Chemicals, Pharmacy etcs. Like rice, sugar, salts, seeds, milk powder, detergent powder, pet foods etc..

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Automatic baling machine is synchronized with one or two packing machine, depending on the product and speed, and pouch collator conveyor, to complete automatically bag loading and baling.

The Automatic baling machine is synchronized with one or multi vertical packaging machine, to complete the packaged pouch products by request order form (one/two/three rows in horizontal) neatly into the baling bag, sealing and take out.

It achieves from bulk materials to be full automatic operation, saving labors, materials and financial inputs, improving the production efficiency and saving transportation costs with safety storage.

Applicable industrials: Agricultures, Foods, Chemicals, Pharmacy etcs. Like rice, sugar, salts, seeds, milk powder, detergent powder, pet foods etc..


Small pouch packing & output- Horizontal conveyor- Climbing & Pressing Conveyor- Accelerating Conveyor- Collator & Discharger- baling machine



Feature:

·        Dual Servo Control

·        Stainless Steel Construction

·        Auto Positioning Belts

·        Auto Film Detection

·        Auto Centering Film Spindle

·        PLC Controls

·        Color Touch Screen Display

·        Easy to operate and clean

·        PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation

·        Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable

·        Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out

·        External film releasing mechanism: simpler and easier installation of packing film

·        Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple

·        Close down type mechanism, defending powder into inside of machine


Model

GVF-1100

Bag Styles

Pillow Bag, Gusseted Bag

Bag Width

100 to 535mm (3.9 to 21")

Product Characteristic

80 to 650mm (3.1 to 25.6")

Film width

≤1100mm (43.3'')

Dosing System Compatible

Granules, Powders, Liquids, Pastes

Running Motion

Intermittent

Working Efficiency

5-25 bags / min

Control By

PLC with HMI Touch Screen

Date Coding Can Be

Hot Stamping Coder, Thermal Transfer Coder, Label Applicator

Options Available

Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller

Power & Voltage

6 KW

Compress Air

0.7 MPa 0.5 M3/min

Dimensions

1700*1270*1900mm (66.9*50*74.8")

Machine Weight

1200 KGS
