Open Mouth Bagging Machine

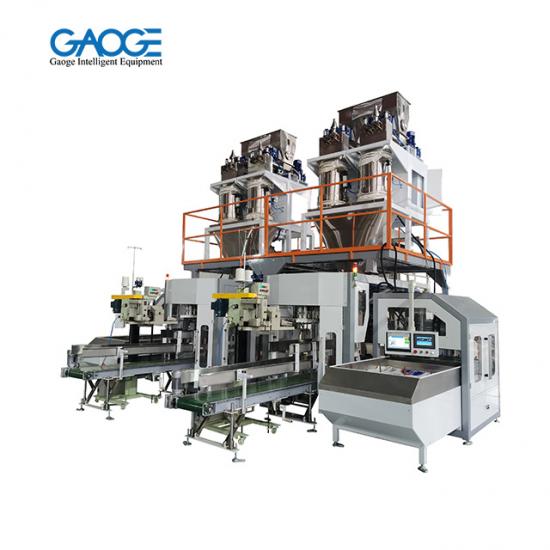

Automatic Bagging Machine For Open-mouthed Bags

Automatic Bagging Machine For Open-mouthed Bags

Automatic bagging machines for open-mouthed bags. Ideal for packaging powdered products, fluidified and non in a wide range of formats.


  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

FOR SPEED UP TO 5 BPM


DIMENSION

min. 350 x 600 mm
Max. 550 x 1100 mm


BAG TYPES

flat, gusset, no gusset, pinch-top


BAGS MATERIAL

aluminised paper, laminated raffia, paper, PE, PE coated paper, PP



The reduced surfaces in contact with the product, typical of gross weight dosing, guarantee very easy cleaning and prevention of contamination.



Distinctive elements of the GW  series are the deaerating probe, which allows removal of excess air and the filling “mouth”, with hermetic sealing of the package during the filling cycle. The combination of these two elements means this model can manage any powdered product with slow flow speed.



Its single-piece structure and "step-by-step" handling of the products, elements typical of the GW series, allow any type of bag, with or without gusset, to be treated with maximum precision and efficiency. Transfer speed is guaranteed by servo-assisted movement with brushless motors.



Feature:

Adaptability to different formats, simply and quickly

Bag opening and presentation in a unique solution for increased processing efficiency

Deaerating probe positioned inside the filling spout

Filling spout with hermetic sealing

Chain conveyor unit for firmer holding during transport to the closing station

Compatible with gross weight weighing machines with screw or twin screw dosing machines, for the different types of product processed

The parts in contact with the product are in stainless steel

Automatic control of the correct operating cycle

Security and access control integrated system

Touch-screen operator panel

Self-diagnosis system for anomalies and verification via display.



Options
All common types of bag closing devices
Product de-aeration
Remote control panel
Bag turning
Closed bag ‘push off’ (top or bottom first)
Full stainless steel design


Model

GW-550

Applicable materials

Powder

Weighing range

5 to 50kg (10lb to 110lb)

Bag Matirical

Woven bag, kraft paper bag, PE bag

Bag Type

One line pocket, M side pocket

Speed

3 to 16 bags/min

Ambient temp

 -10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

3KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L800-1000 x W450-550mm

Packing weight(kg)

15-50kg/bag
