Metal Detectors are useful for detecting ferrous and non-ferrous objects in finished products package, it widely applied in foodstuff, toys, medicines, textile and other industries.
Brand:
GAOGEWarranty:
2 YearsCertification:
ISO CEPort:
Ningbo/Shanghai/GuangzhouPackaging Details:
Wooden Case
Applications:

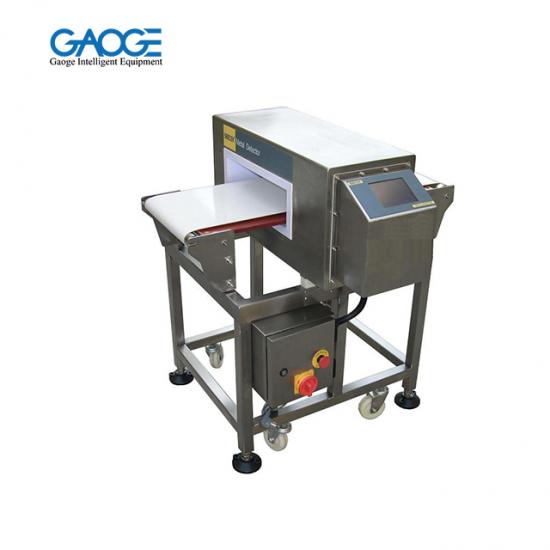

GMD Series Metal Detectors are useful for detecting ferrous and non-ferrous objects in finished products package, it widely applied in foodstuff, toys, medicines, textile and other industries.
● User friendly touch screen control system
● Auto-detecting working status, conveniently for maintenance
● All Stainless Steel Configuration and conveniently clean.
● Conform to GMP and HACCP standard
● Auto-Reject mechanism and alarm light auto-stop is optional
|
Model |
4010 |
4012 |
4015 |
4020 |
5015 |
5025 |
5030 |
5030 |
|
Detecting Tunnel Width (mm) |
400 |
400 |
400 |
400 |
500 |
500 |
500 |
500 |
|
Detecting Tunnel Height (mm) |
100 |
120 |
150 |
200 |
150 |
200 |
250 |
300 |
|
Sensitivity Fe≥Ф (mm) |
0.6 |
0.8 |
1.0 |
1.2 |
1.0 |
1.2 |
1.5 |
2.0 |
|
Sensitivity SUS304≥Ф (mm) |
1.2 |
1.5 |
2.0 |
2.5 |
2.0 |
2.5 |
3.0 |
3.5 |
|
Conveyor Belt |
White food grade industrial belt |
|||||||
|
Detecting Method |
Belt stop and Auto Alarm |
Alarm and Reject automatically (By Option) |
||||||
|
Voltage Power |
220V, 1ph or 380V, 3ph |
|||||||
|
Working temperature |
-10℃ to 40℃ |
|||||||
