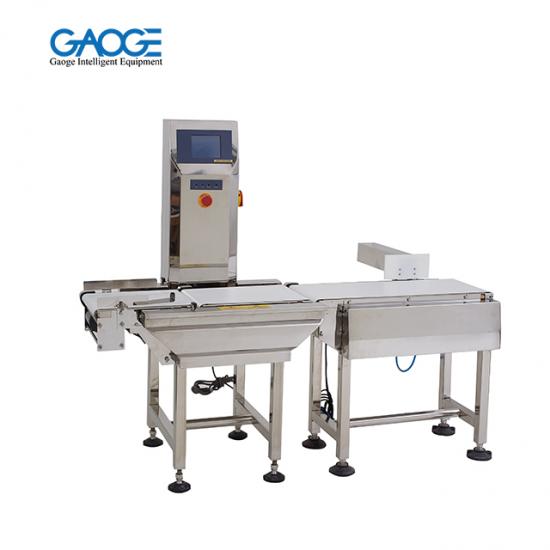

Checkweigher

Checkweighers can handle various pack types, including bags, trays and cartons and are suitable for most production environments. Innovative modular design makes the checkweigher easy to clean minimizing downtime.


  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Applications:
GT Series checkweighers can handle various pack types, including bags, trays and cartons and are suitable for most production environments. Innovative modular design makes the checkweigher easy to clean minimizing downtime. Accurate and reliable, it utilize the latest weighing technology and offer various reject devices best suited to the line configuration.



Feature:

●Germany HBM Digital Load Cell
●Full color touch screen system, simple intuitive and easy to operate User friendly Touch Screen Controlleroperability.
●Conveyor belts are motorized by three units of individual stepper
●Auto alarm and belt stop with optional reject mechanism device
●Water-proof and dustproof IP30/IP66 optional.
●Stainless steel construction, built-in hinge design, easy to clean.

Model

GT-160

GT-230S

GT-230L

GT-300

GT-400

Detecting Range (kg)

0.01~0.6

0.02~2

0.02~2

0.02~5

0.2~10

Scale Interval(g)

0.05

0.1

0.2

0.2

1

Accuracy(Зσ)

±0.1g

±0.2g

±0.2g

±0.5g

±1g

Detecting Speed(Max speed, pcs/min)

250

200

155

140

105

Belt Speed

70m/min

Product size

W (mm)

150

220

220

290

390

L (mm)

200

250

350

400

500

Weigher platform size

W (mm)

160

230

230

300

400

L (mm)

280

350

450

500

650

Operation Screen

7-inch Touch LCD Screen

Product Storage Quantity

100 kinds

Segments Number of Sorting

2 or 3

Rejecter

Rejecter Optional

Power Supply;

220V, 1ph or 380V, 3ph

Degree of Protection

IP30/IP54/IP66

Body Material

Stainless Steel (SUS304)
