Vertical Packaging Machine

Intermittent Motion Vertical Form/Fill/Seal

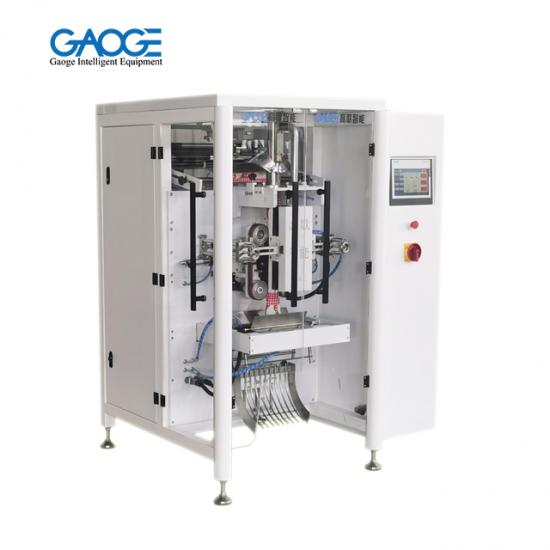

Intermittent Motion Vertical Form/Fill/Seal

No matter if it's dried fruit, cereals or short cut pasta – this machine ensures economical packaging and safe handling of coarse, granulated, or powdery products.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

GVF is an industry leading manufacturer of rugged, cost competitive, and easy-to-use vertical form fill seal (VFFS) equipment for all types of flexible packaging. With more than 30 years of flexible packaging expertise, GVF has the ability, knowledge, and commitment to tailor highly efficient and profitable packaging systems for our customers on a global scale. GVF is a product brand of GAOGE, a global leader in packaging line solutions. As part of the GAOGE business line, GVF helps its packaging customers protect and grow the reputation and trust of their consumers.


No matter if it's dried fruit, cereals or short cut pasta – this machine ensures economical packaging and safe handling of coarse, granulated, or powdery products.
Runs films that require longer seal times making it ideal for markets such as:

Snack Industry, Frozen, Fresh cut, IQF (Individually Quick Frozen) markets, the Cheese Industry and more


Feature:

1.10-inch Siemens PLC control system
2.The temperature control system is displayed on the touch screen
3.Complete set of servo film pulling and servo sealing
4.Schneider's low-voltage electrical appliances and Yadeke's pneumatic components
5.Change from double handle structure to single handle former.The bag form  system can be quickly replaced.
6.The rapid cooling of the sealing system ensures that the bag is not easy to break.
7.The independent protection system of main components can stops and cuts off power immediately in order to protect workers' safety.
8.The machine is connected by aviation socket, which is convenient for change parts and maintenance later
9.High performance and low cost.
10.Compact small size design,small footprint.


Model

GVF-520

Bag Styles

Pillow Bag, Gusseted or block bottom bag (Option)

Bag Width

100 to 260mm (3.9 to 10.2")

Product Characteristic

50 to 400mm (2.0 to 15.7")

Film width

≤520mm (20.5'')

Dosing System Compatible

Granules, Powders, Liquids, Pastes

Running Motion

Intermittent

Working Efficiency

30-80 bags / min

Control By

PLC with HMI Touch Screen

Date Coding Can Be

Hot Stamping Coder, Thermal Transfer Coder, Label Applicator

Options Available

Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller

Power & Voltage

5 KW

Compress Air

0.7 MPa 0.4 M3/min

Dimensions

1600mm*1170mm*1610mm (63.0*46.1*63.4")

Machine Weight

950 KGS
