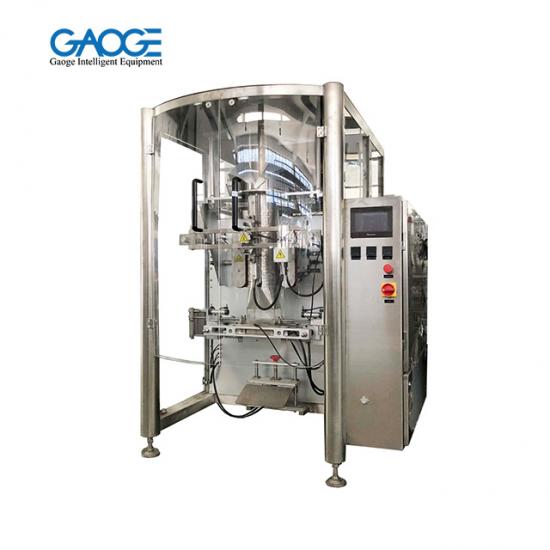

GVF-720 Automatic Packaging Machine Form Fill Seal Machine

GVF-720 Automatic Packaging Machine Form Fill Seal Machine

  • High performance and reliable with intermittent or reciprocating continuously motion Vertical Form Fill And Seal (VFFS) Machine
  • Designed for forming bag from film, Filling it by synchronized dosing system, sealing it and outputting.
  • VFJ series is able to make pillow bag, gusseted bag, flat-bottom bag, quad seal bag, vacuum bag, vent valve bag and M shape guesset bag.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

The GVF series of GAOGE vertical packaging machines will be your long-term and reliable partner. You'll be able to quickly respond to the changing demands and challenges of the market thanks to its versatility, high speed and ability to create more than types of bags.

Engineered as the most easily serviceable vertical bagging machine on the market today, the GVF series is as user friendly as it is fast.

Commonly used for applications from 50 packages per minute to 100, the GVF series vertical form and seal machine can produce pouches up to 15 inches wide (375mm) and includes a heavy duty welded stainless steel frame that is built to last.


Feature:

·        Dual Servo Control

·        Stainless Steel Construction

·        Auto Positioning Belts

·        Auto Film Detection

·        Auto Centering Film Spindle

·        PLC Controls

·        Color Touch Screen Display

·        Easy to operate and clean

·        PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation

·        Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable

·        Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out

·        External film releasing mechanism: simpler and easier installation of packing film

·        Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple

·        Close down type mechanism, defending powder into inside of machine


Model

GVF-720

Bag Styles

Pillow Bag, Gusseted Bag

Bag Width

100 to 350mm (3.9 to 13.8")

Product Characteristic

80 to 470mm (3.1 to 18.5")

Film width

≤730mm (28.7'')

Dosing System Compatible

Granules, Powders, Liquids, Pastes

Running Motion

Intermittent

Working Efficiency

10-50 bags / min

Control By

PLC with HMI Touch Screen

Date Coding Can Be

Hot Stamping Coder, Thermal Transfer Coder, Label Applicator

Options Available

Perforation, Dust Absorb, Seal PE Film, SS Frame, SS & AL Construction, Nitrogen Flushing, Coffee Valve, Air Expeller

Power & Voltage

6 KW

Compress Air

0.7 MPa 0.5 M3/min

Dimensions

1700*1270*1900mm (66.9*50*74.8")

Machine Weight

1000 KGS
