Open Mouth Bagging Machine

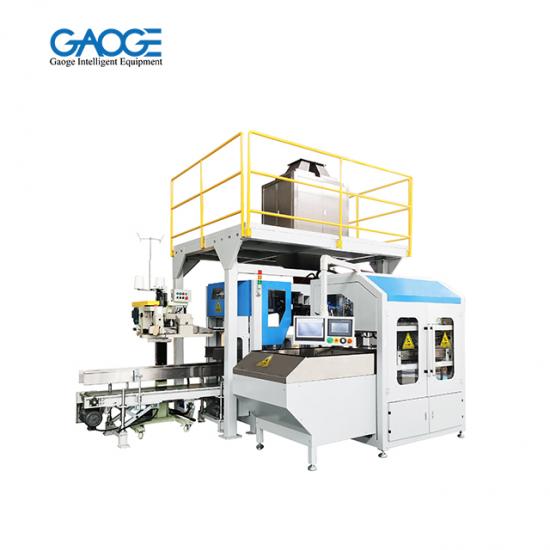

Fully Automatic Open Mouth Bag Packing Machine

Fully Automatic Open Mouth Bag Packing Machine

Open mouth bag fillers are very simple, fast filling and easy filling of both food grade and non-food grade materials.
They are well suited for both manual and automated applications. Open mouth filling systems are ideal for hard to handle materials or products that are dry, free flowing and minimally dusty ranging from landscaping materials, feed, seed & fertilizer to food products.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Open mouth bag fillers are very simple, fast filling and easy filling of both food grade and non-food grade materials.
They are well suited for both manual and automated applications. Open mouth filling systems are ideal for hard to handle materials or products that are dry, free flowing and minimally dusty ranging from landscaping materials, feed, seed & fertilizer to food products.

GAOGE’s open mouth bagging machines are capable of filling 20-110 lbs. (9-50KG) bags with non-dusty powders, flaked and granular products at rates up to 24 bags/minute (1,440 bags / hour).

Chemicals:  Fertilizer, Plastic Pellets
Food Products:  Sugar, Salt, Cake Mixes
Agricultural:  Animal Feed, Corn, Soybeans
Landscaping Products:  Soil, Compost, Sand, Gravel

Feature:

* The automatic packaging machine can pack granular and powder materials into premade open mouth bags automatically, It can realize automatic bag feeding, bag opening, bag loading, products filling, bag sealing and others.

*The packed bag is well sealed, suitable for packing powder and granule, like feed, pet food, seed, rice, salt, fertilizer, etc.

*Friendly human-machine interface (HMI), it can providing complete fault diagnosis and solution, and quick switching of working modes for packing different characteristics materials.

* Controlled by the color touch screen(Siemens), and has real-time online detection function, which is convenient for different users

* Stable and reliable running, convenient maintenance

* Compact design ideal for restricted packaging rooms

* Individual bag pick-up and opening
* Empty bag (with or without gusset) transfer to filling mouth
* Bag hermetic fastening on filling mouth
* Bag filling (product discharge from scale or dozer) and vibrating
* Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.



Options
All common types of bag closing devices
Product de-aeration
Remote control panel
Bag turning
Closed bag ‘push off’ (top or bottom first)
Full stainless steel design




Model

GW-650

Applicable materials

granulargood liquidity)

Weighing range

5 to 50kg (10lb to 110lb)

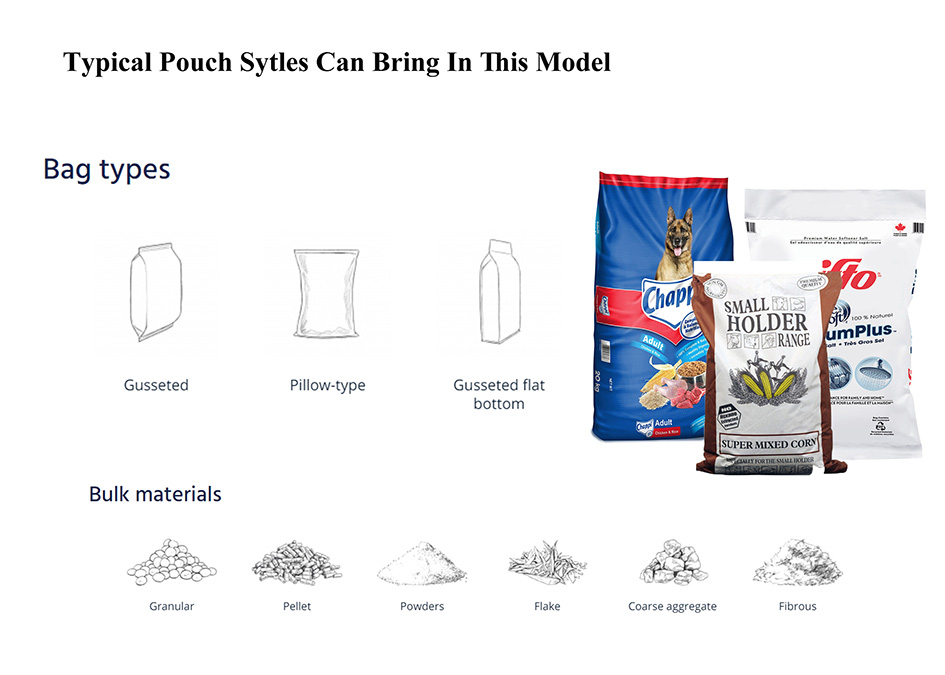

Bag Matirical

Woven bag, kraft paper bag, PE bag

Bag Type

One line pocket, M side pocket

Speed

3 to 16 bags/min

Ambient temp

 -10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

3KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L 900-1100mm x W 550-650mm

Packing weight(kg)

40-50kg/bag
