5-50kg Bag Palletizing Systems

Palletizing refers to the operation of moving and storing cartons, bags, drums, packages, pieces, among other products over a pre-determined surface. Product moving system driven by claws, pincers or suction according to necessity. Pallet magazine for reposition of empty pallets without hand contact, as well as exit of the complete pallet.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Whether you are in a search for robotic, gantry, or collaborative palletizer, Nortech Packaging has the solution for you. All of our palletizers feature compact overall footprints which contributes to significant space saving and besides that, they are all competitively priced. Beside palletizing lines, Nortech Packaging also builds combo packaging lines with robotic case erecting and loading, case closing, labeling and palletizing.

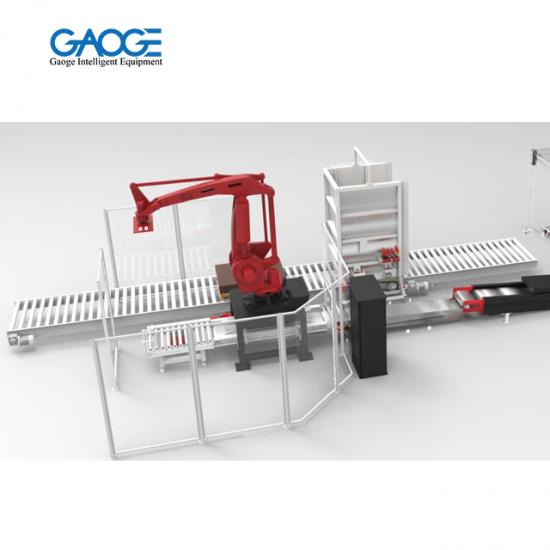

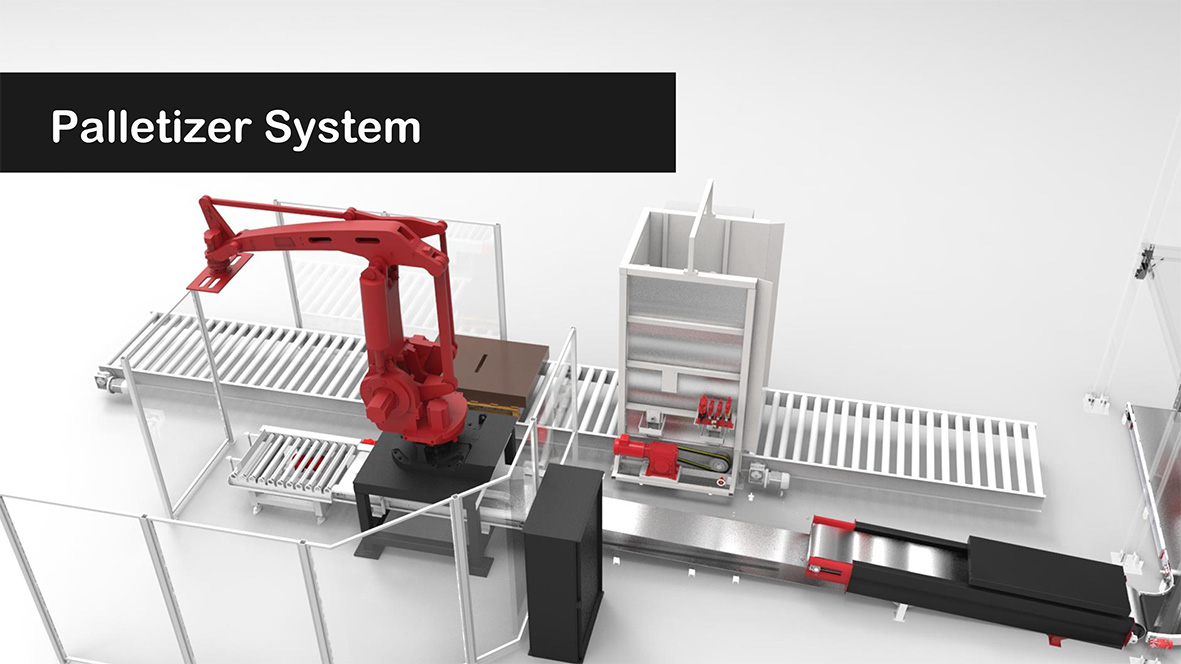

Bag Palletizing system that has been engineered for precision high-speed / high-payload operation, user-friendly setup, and maximum reliability.

Features
● Ideal for higher capacity applications for bags
● Integrated bag conditioning and flatten conveyor
● Rotating pincer orienting unit to turn bags as required
● Automated pallet magazine and feed
● Diagnostics and data acquisition, fault alarm shutdown
● Easy operation
● Low maintenance



Maximum speed

1200 b/h

Workable bag weights

up to 50 kg

Minimum pallet dimensions

800 x 1200 mm

Maximum pallet dimensions

1100 x 1500 mm

Maximum palletized load height

1800 mm, including pallet height

Maximum full pallet weight

2000 kg

Operating system

PLC

Power supply

220/380 V - 50 Hz
