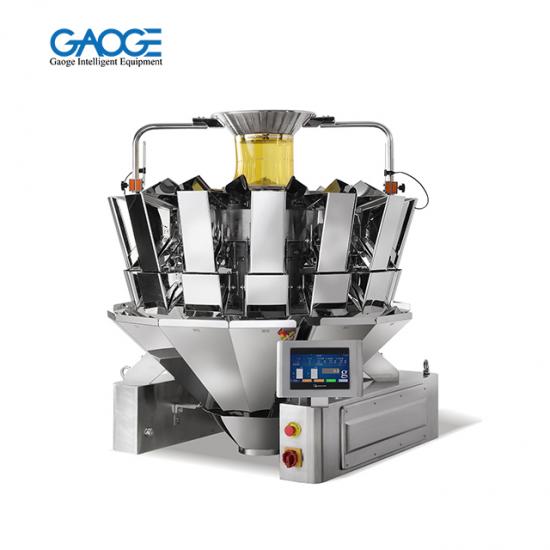

GDM14-2.5 14 Heads Multi-Heads Combination Scale

GDM14-2.5 14 Heads Multi-Heads Combination Scale

It’s suitable for granule, chunk, flakes products, such as snacks, cheese, pasta, candies, pet foods, IQF frozen foods…
Ideal for quantitative weighing of granule, slice, flake, roll or irregular shapes materials, such as candy, snacks, pasta, IQF frozen food, cheese, rice, pet foods and other non-food products.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Multiple combination weighing system. Fast, accurate, reliable and hygienic. Available in various models to suit specific requirements. The ideal weighing solution for achieving high production levels with maximum accuracy


Feature:

● Touch screen interface
● Language support
● IP65 waterproof and dustproof design
● Program and mechanism diagnostic function
● Auto-selection and one-plus two collecting hopper system
● High precision diagital weighing sensor
● Adjustable opening angle of stepper motor to obtain high precision
● High-Speed and High-Accuracy mode is optional to pick
● Combination bucket could dump orderly to avoid products jam up
● User friendly operation manual could read on the touch screen
● Powerful statistics function, recording every batch production data
● Pieces counting function
● Enclosed stainless steel construction

Model

GDM14-2.5

GDM16-5.0

Max. Cap.(g)

10-2000g

100-3000g

Weighing Accuracy(g)

0.1-1.5g

1-5g

Max. Weighing Speed

120 bags/min

70 bags/min

Hopper Volume

2500ml

5000ml

Control Panel

8.4"LCD Keypad Screen/10.4Touch Screen

Options

Dimple Plate/Timing Hopper/Printer/Rotary Top Cone

Driving System

Step Motor

Power Requirements

220V/1000W/50/60HZ/10A

Packing Dimension(mm)

L1700 X W1100 X H1100MM

Gross WGT

480KG
